Architecture#

This page explains three design decisions that underpin the monitoring pipeline: the xarray result database schema, the timestamp handling convention, and the engine / site separation. Each section is anchored by a diagram and goes one level deeper than the overview in pyOMA’s continuous monitoring page.

The xarray result database#

The pipeline maintains three families of NetCDF files, all managed through xarray:

File pattern	Engine	Contents
`file_info_<origin>.nc`	NETCDF4	One row per raw file: `file_name`, `file_size`, `file_time` (POSIX float), `start_time` (POSIX float), `sample_rate`, `duration` (seconds), per-channel statistics (mean, min, max, var, skewness, kurtosis, q05, q50, q95, rms, error), and computed `gap_length` (samples).
`<dur>-minutes/stats_<quantity>.nc`	NETCDF4	One row per fixed-duration window: channel statistics over the preprocessed, band-limited slice.
`<dur>-minutes/modal_<quantity>.nc`	h5netcdf (complex array support)	One row per window: identified frequencies, damping ratios, mode shapes, uncertainty estimates (`std_frequencies`, `std_damping`), MPC, MPD, and singular-value PSD statistics.

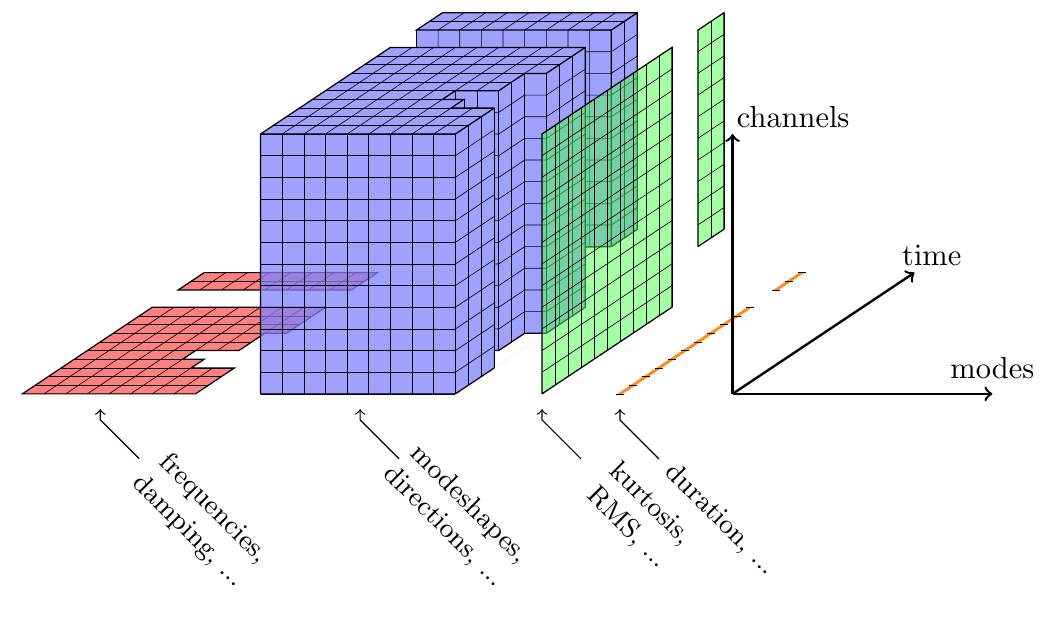

All three databases share the same three-dimensional structure:

time — UTC-naive datetime64[ns]; gaps arise from system downtime or discarded quality-flagged windows.
modes — integer index; modes not identified in a given window are simply absent (the modes coordinate is sparse across time).
channels — string channel names; sensors added or replaced over the years introduce gaps in mode-shape data.

The sparse structure is a deliberate choice. xr.Dataset.combine_first fills only the missing entries from a new dataset, preserving existing values on overlap — this is the merge primitive used throughout monitoring.save_ds. The pattern:

current_ds = current_ds.combine_first(new_ds)

means “fill gaps in current_ds with values from new_ds; on conflict, keep current_ds values.” This is the opposite precedence from xr.merge, which raises on conflicts.

File-per-worker write pattern. When multiple workers run in parallel, each writes to its own private file modal_<quantity>.<pid>.nc (a POSIX-unique name) and only acquires the MultiLock for the final merge step into the master modal_<quantity>.nc. This keeps lock contention minimal: the expensive per-window computation happens without any lock held.

Why xarray / NetCDF? Plain NumPy arrays require the caller to maintain separate index arrays; Pandas DataFrames handle 2-D data well but become unwieldy for ragged 3-D structures (time × modes × channels). xarray coordinates carry their own labels, support boolean and slice selection by timestamp, and the NetCDF format is self-describing and directly readable by MATLAB, R, and Julia — a requirement for long-term archival of multi-year monitoring data.

Timestamp handling#

The problem. Raw data files carry timestamps in device-local naive time (the Q.Station controller clock runs in Europe/Berlin but stores no timezone information; the FBG interrogator uses filesystem modification time via tzlocal). DST transitions in Europe/Berlin mean that the same naive hour string can refer to two different UTC instants in autumn, and one hour entirely vanishes in spring. A monitoring system accumulating data since 2015 has crossed many such transitions.

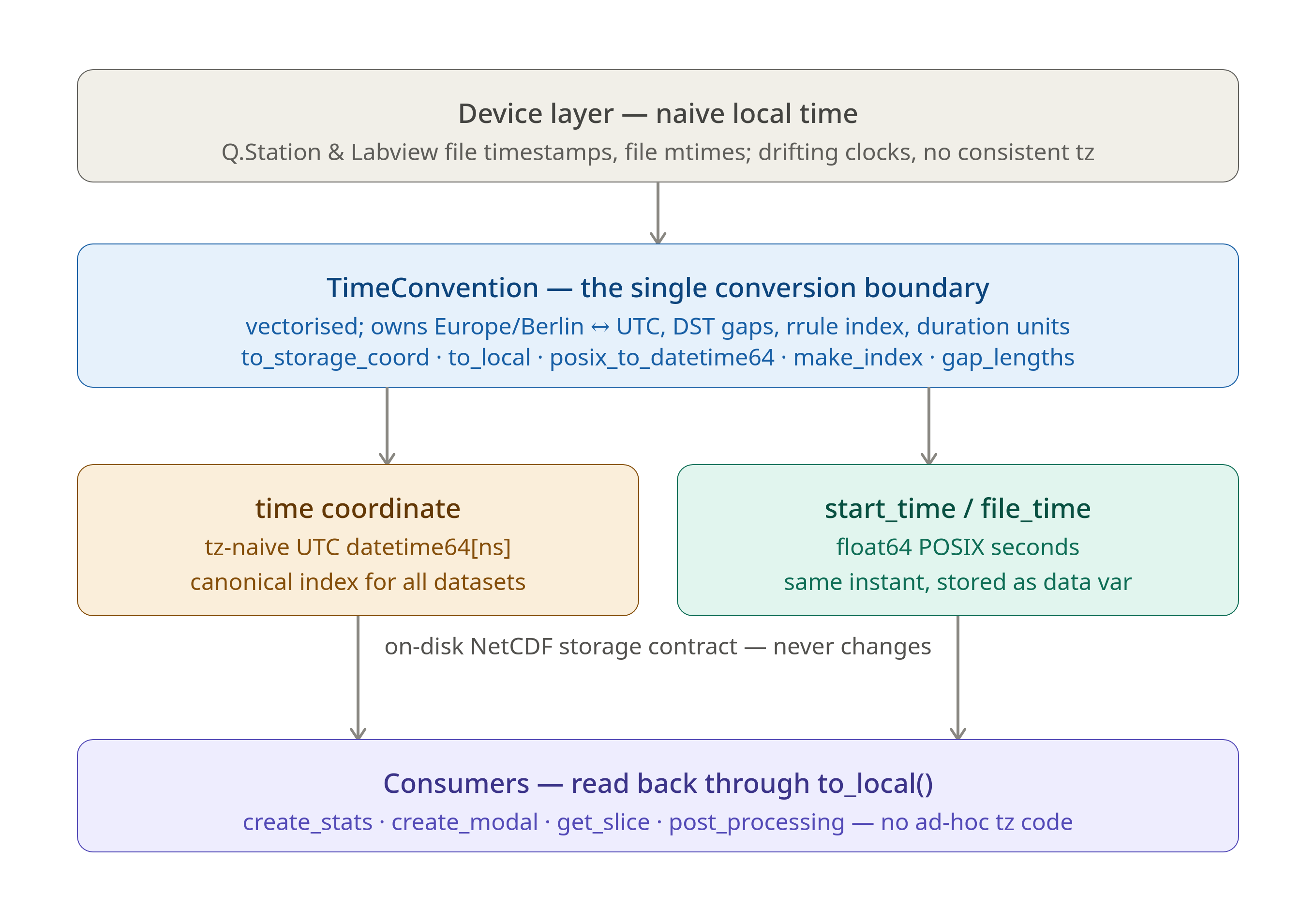

Single conversion boundary. time_convention.TimeConvention (singleton TC) owns all Berlin↔UTC/DST logic. No timezone conversion occurs anywhere else in the codebase:

from time_convention import TC

# Annotate a naive local datetime as Berlin-aware, then convert to UTC-naive
utc_naive = TC.to_storage_coord(aware_start_time)
# → pd.Timestamp(aware).tz_convert('UTC').tz_localize(None).to_datetime64()

# Recover for display / slicing
local_ts = TC.to_local(stored_utc_naive)
# → pd.Timestamp(stored).tz_localize('Europe/Berlin', nonexistent='NaT')

Dual on-disk storage contract. Every result database stores the same instant in two encodings, both written once per row by monitoring.create_file_info:

time coordinate — tz-naive UTC datetime64[ns]; used as the xarray index for all merges and selections.
start_time / file_time variables — float64 POSIX seconds; used for gap-length arithmetic and recovery via .astype('datetime64[s]').

The two encodings carry the same information, and tests/test_time_handling.py verifies the round-trip fidelity.

DST gap handling. TC.to_local passes nonexistent='NaT' to tz_localize, so timestamps in the spring-forward gap (02:00–02:59 Europe/Berlin on the last Sunday in March) map to NaT rather than raising. create_stats and create_modal_results skip NaT timestamps with a pd.isnull guard. TC.is_near_dst_transition provides a wider ±3-hour exclusion zone used during file ingestion to avoid mis-stamped files recorded during the controller clock adjustment.

Two historical foot-guns, pinned as regression tests.

Bug 1 — ``’us’`` vs ``’s’`` duration unit. In several xarray arithmetic expressions across the codebase, the float duration column (stored in seconds) is multiplied by np.timedelta64(1, 's') to recover a timedelta64. An earlier version used 'us' (microseconds), making duration=3600 add 3.6 ms instead of 1 hour. The correct pattern is pinned in TestXarrayTimeArithmetic and TestTimedeltaUnit.

Bug 2 — NaT → int64 sentinel. TimeConvention.gap_lengths shifts a datetime64 DataArray by one position with .shift(time=-1), which fills the last element with NaT. Converting NaT directly to int64 yields np.iinfo(np.int64).min ≈ −9.2×10¹⁸, which then propagates as an enormous negative gap length. The fix masks elements equal to INT64_MIN to np.nan before scaling. Pinned in TestNatSentinel and TestNatInt64.

The entire set of library contracts and conversion chains is encoded in tests/test_time_handling.py as the executable specification. When numpy, pandas, or xarray is upgraded, a failing test there is an explicit signal to audit the corresponding code path.

Engine / site design#

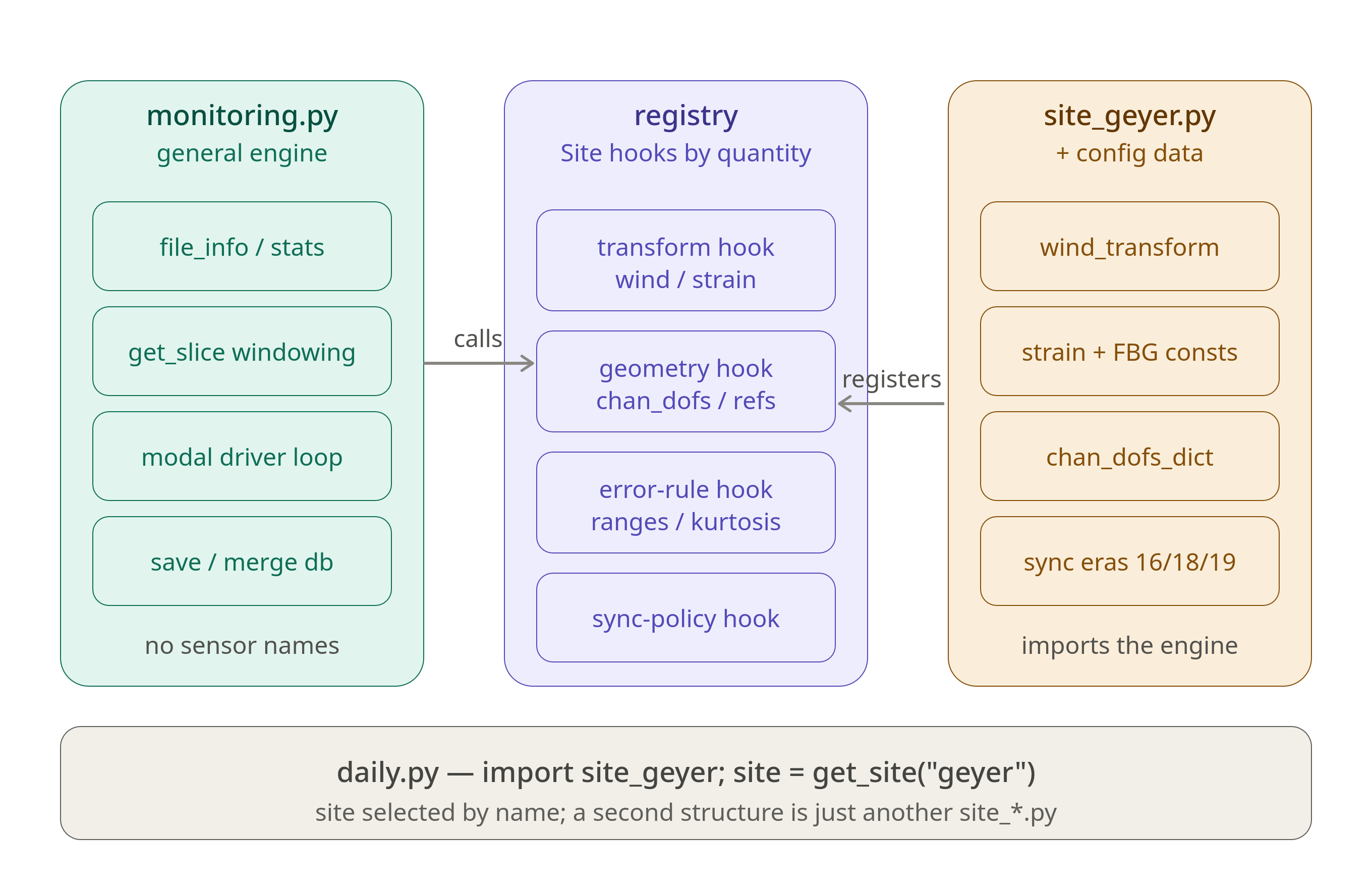

Engine and site module interaction — Engine / site interaction. `daily.py` imports the site module, which registers its callbacks into a process-level `_SITES` registry. The engine dispatches through that registry; it never imports the site directly. A second monitored structure is just another `site_*.py`.#

The dependency direction is the key invariant.

The engine (monitoring.py) is completely site-agnostic. It knows nothing about tower geometry, FBG calibration coefficients, or Gantner filename patterns. All site-specific knowledge lives in a site module (site_tower.py for the tower; site_example.py is a public template for new deployments). The dependency arrow points inward: the site module imports the engine (lazily, inside functions, to avoid circular imports at load time) — the engine never imports the site.

Registration. Each site module calls monitoring.register_site(site) and monitoring.set_active_site(site) at import time. daily.py selects the active site simply by importing the correct module:

import site_tower    # registers and activates on import

After that, every engine function dispatches through the process-level _active_site reference.

The Site dataclass is the contract between engine and site. It carries eight callable fields (hooks) and twelve configuration fields (paths, channel lists, etc.) — see Writing a Site Module for the full reference. The engine calls hooks like this (condensed from monitoring.get_slice_corrected):

site = _active_site
if site is not None:
    transform = site.transforms.get(quantity)
    if transform is not None:
        data_slice = transform(*data_slice, quantity=quantity,
                               start_time_local=start_time,
                               duration=duration, **kwargs)

Graceful failure. If no site is registered (_active_site is None), engine functions fall back to safe defaults (no transforms, arithmetic mean for all channels, start_time returned unchanged from sync_policy). A RuntimeError is raised only when a hook is truly required and absent — for example, when modal analysis is requested but no setup_prep has been registered for the quantity.

Adding a second structure. Copy site_example.py, rename it site_newstructure.py, implement the stubs, and import it. Both sites can coexist in _SITES; set_active_site selects which one the engine uses. The engine code is unchanged.

Public vs private. The engine (monitoring.py, time_convention.py, config.py, MultiLock.py, site_example.py) is suitable for public distribution. The concrete site module (site_tower.py) encodes site-specific geometry, calibration constants, and synchronisation-era logic that is not transferable to other structures, and may remain private. See Configuration Guide for the complete guide to writing and wiring a new site module.
